AKH-0.66/K-Serie AC Split Core Corter Correctransformator

Spcification

Curant Curant Matio
(A)

Präzisionsgrad und entsprechende Nennlast

(VA)

Gerade-
durch
Tums

Bus

Spezifikation (mm)

/Nummer

0.2

0.5

1.0

K-30 × 20

20-75/1a

0.2

1

30 × 10/1

100-150/5 (1) a

1

200/5 (1) a

1.5

250-300/5 (1) a

1.5

350-400/5 (1) a

2.5

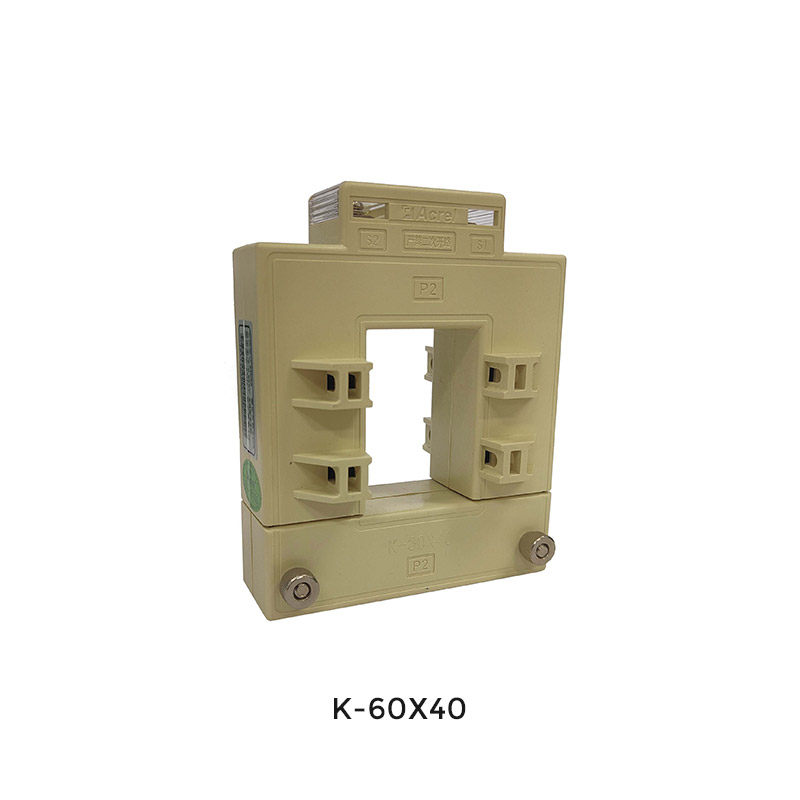

K-60 × 40

250-300/5 (1) a

1.5

1

60 × 10/1-2

350-450/5 (1) a

1.5

500-800/5 (1) a

2.5

1000-1250/5 (1) a

5

1500/5 (1) a

10

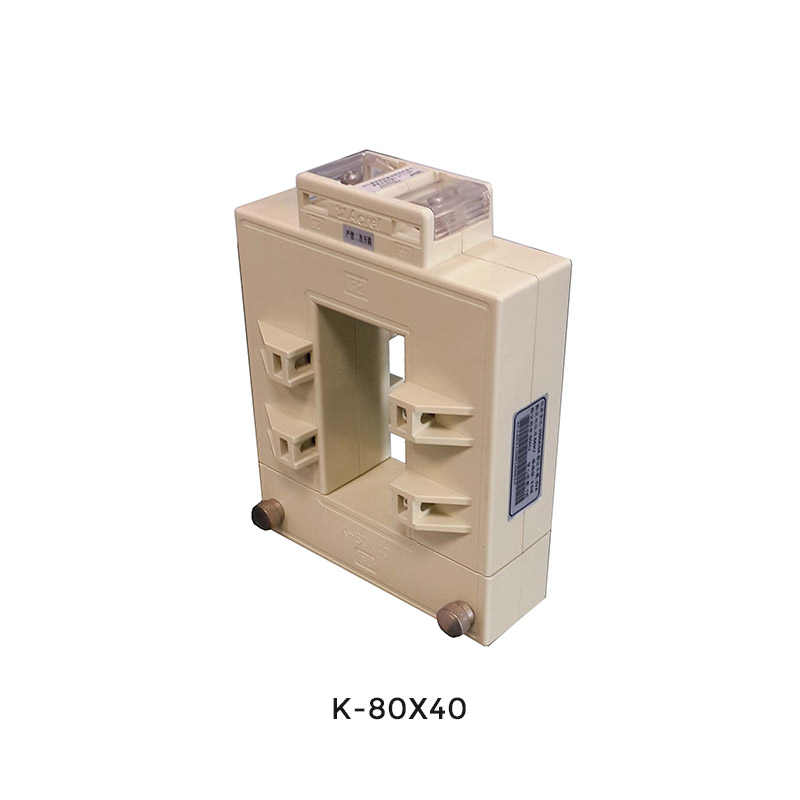

K-80 × 40

300/5 (1) a

1.5

1

80 × 10/1-2

350-450/5 (1) a

2.5

500-800/5 (1) a

5.0

1

1000-2000/5 (1) a

10

2500-3000/5 (1) a

10

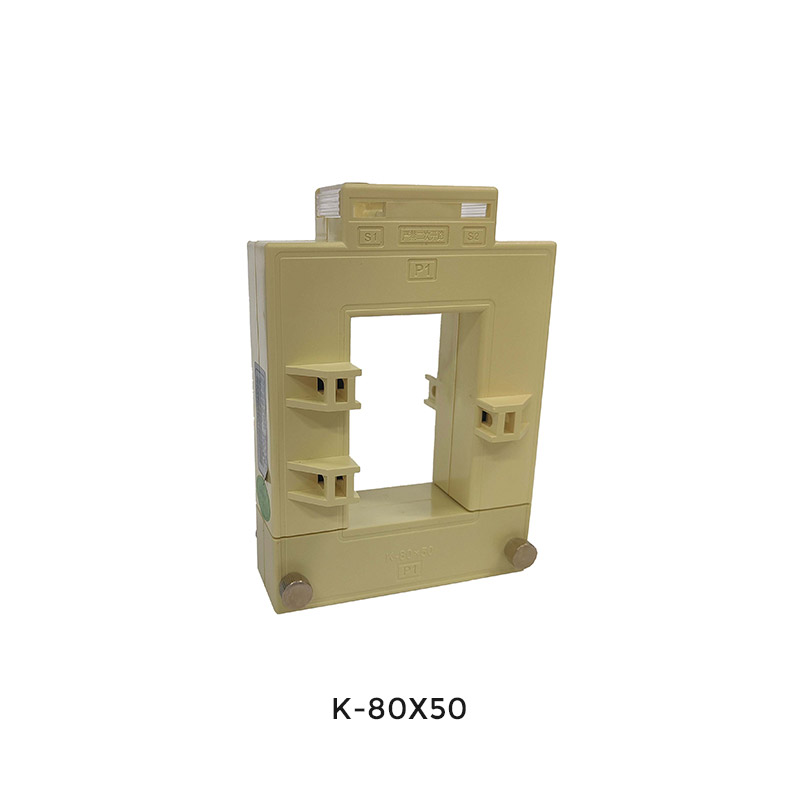

K-80 × 50

250-300/5 (1) a

1.5

1

80 × 10/1-3

400-450/5 (1) a

1.5

500-800/5 (1) a

2.5

1000-1500/5 (1) a

5

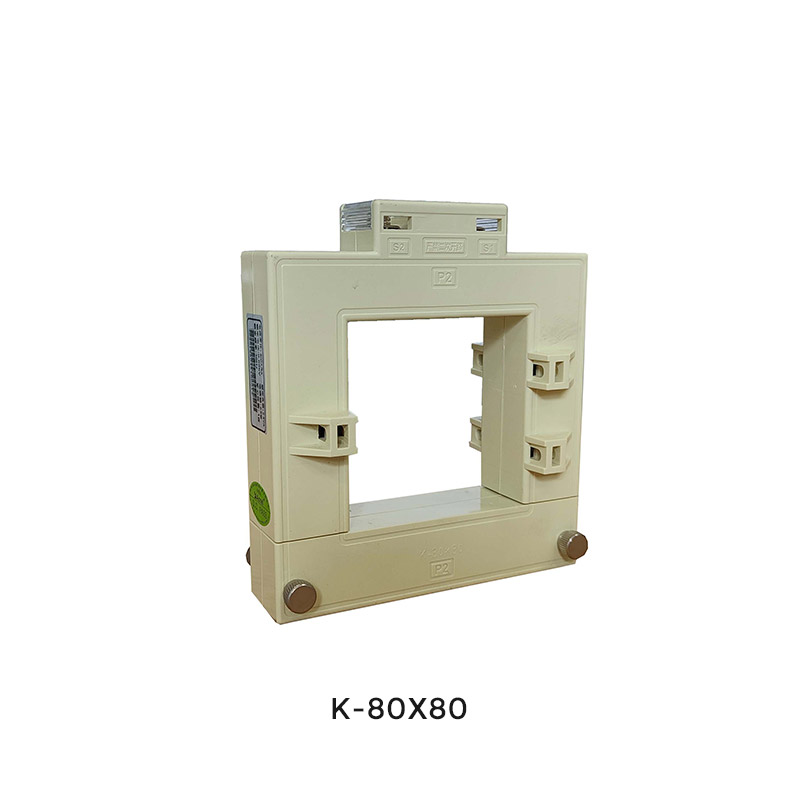

K-80 × 80

200-300/5 (1) a

1.5

1

80 × 10/1-4

400-450/5 (1) a

1.5

500-800/5 (1) a

2.5

1000/5 (1) a

5

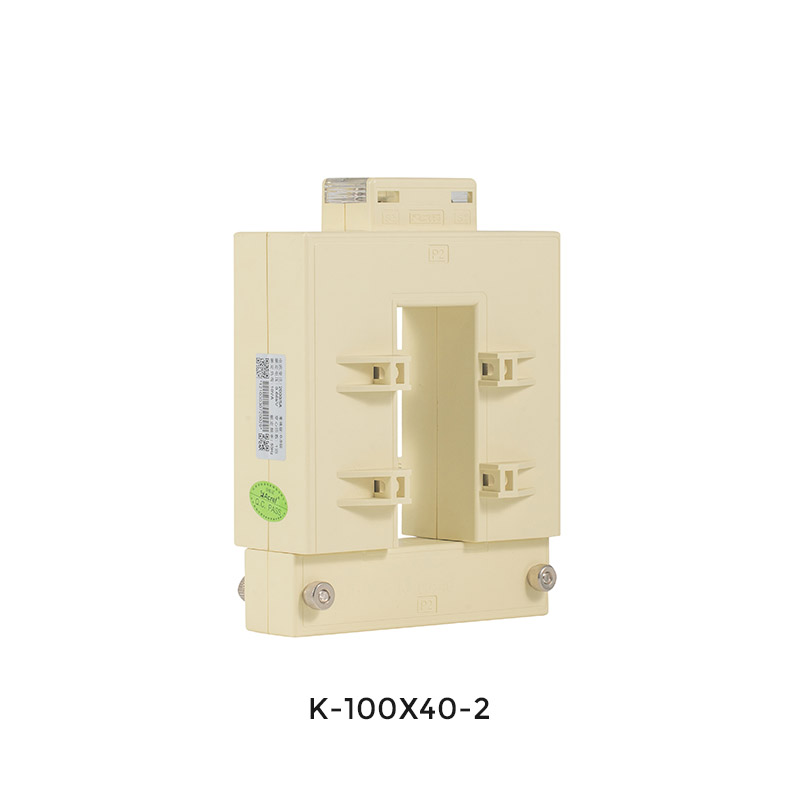

K-100 × 40

1000-2000/5 (1) a

10

1

100 × 10/1-2

2500-3000/5 (1) a

10

4000a/5 (1) a

15

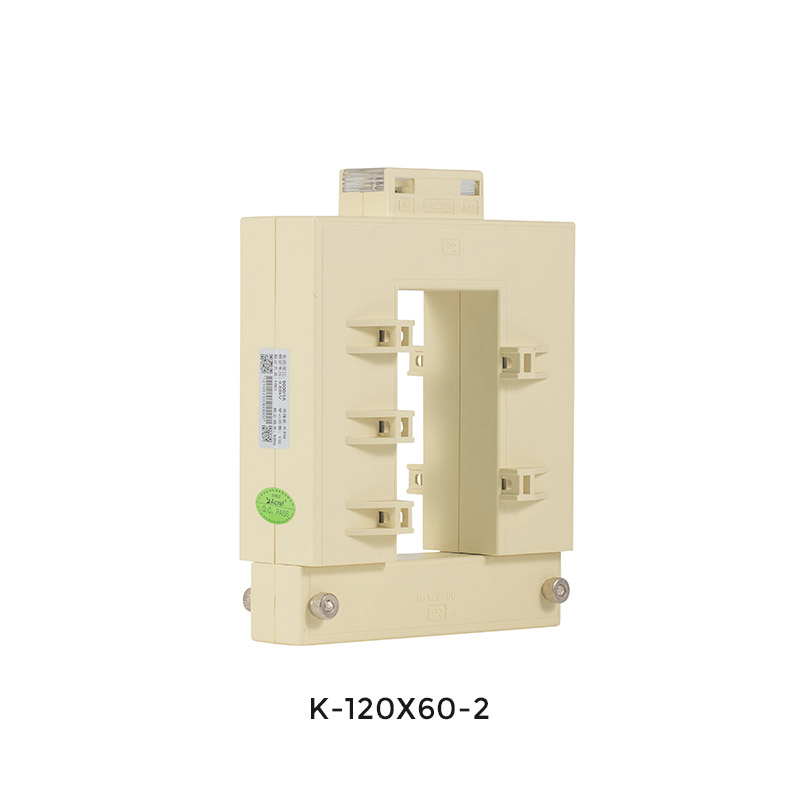

K-120 × 60

400-450/5 (1) a

2.5

1

120 × 10/1-3

500-800/5 (1) a

5

1000-2000/5 (1) a

10

2500-4000/5 (1) a

10

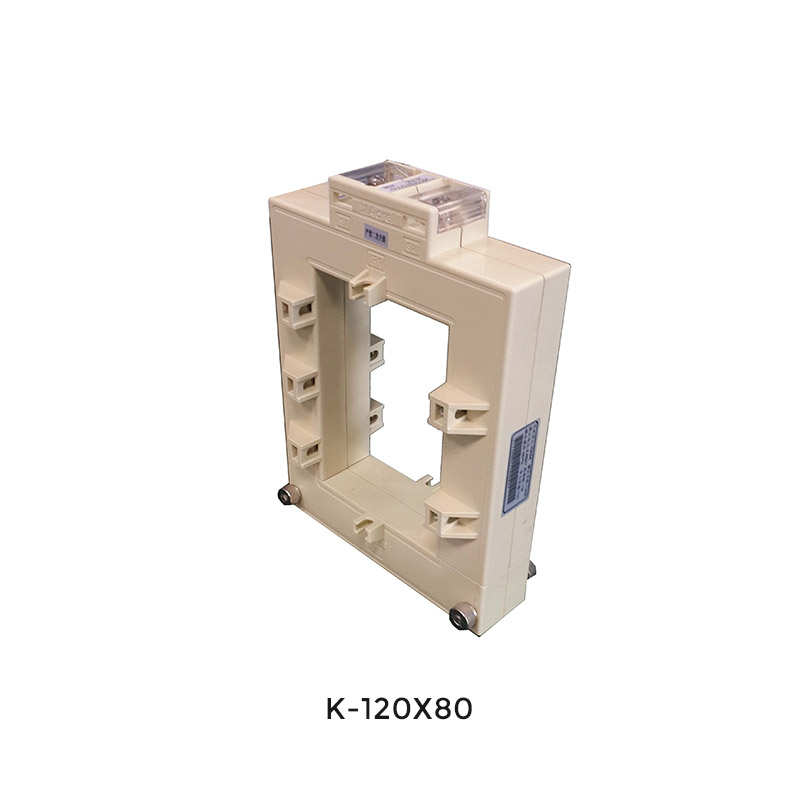

K-120 × 80

500-800/5 (1) a

2.5

1

120 × 10/1-4

1000-1200/5 (1) a

5

1250-1500/5 (1) a

7.5

2000/5 (1) a

10

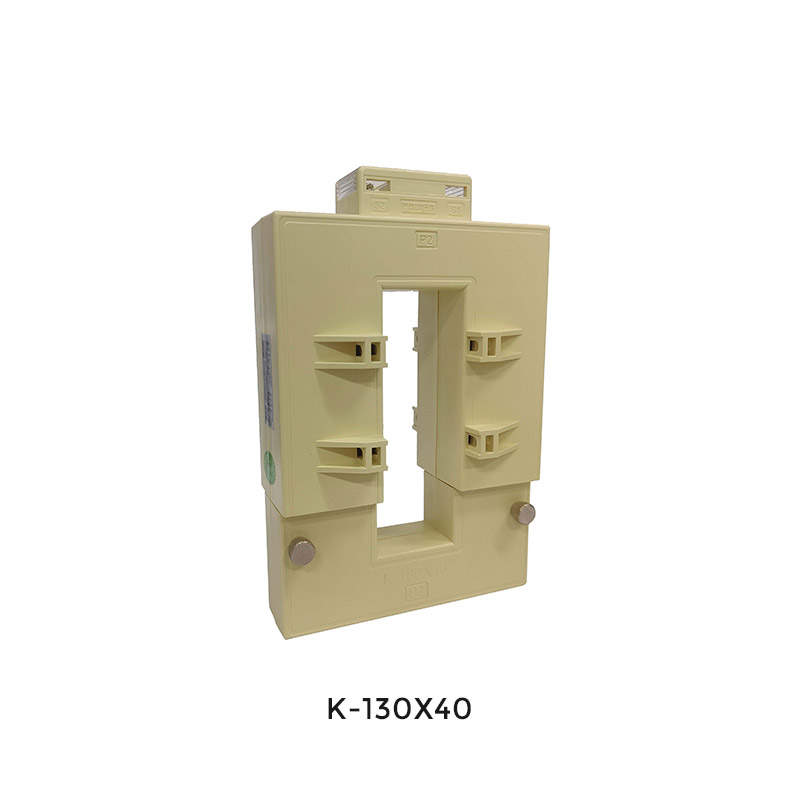

K-130 × 40

1000-2000/5 (1) a

10

1

130 × 10/1-2

2500-4000/5 (1) a

10

K-130 × 40n

1000-2000/5 (1) a

10

1

130 × 10/1-2

2500-3000/5 (1) a

10

4000-5000/5 (1) a

15

K-130 × 50

1000-2000/5 (1) a

10

1

130 × 10/1-3

2500-3000/5 (1) a

10

4000-5000/5 (1) a

15

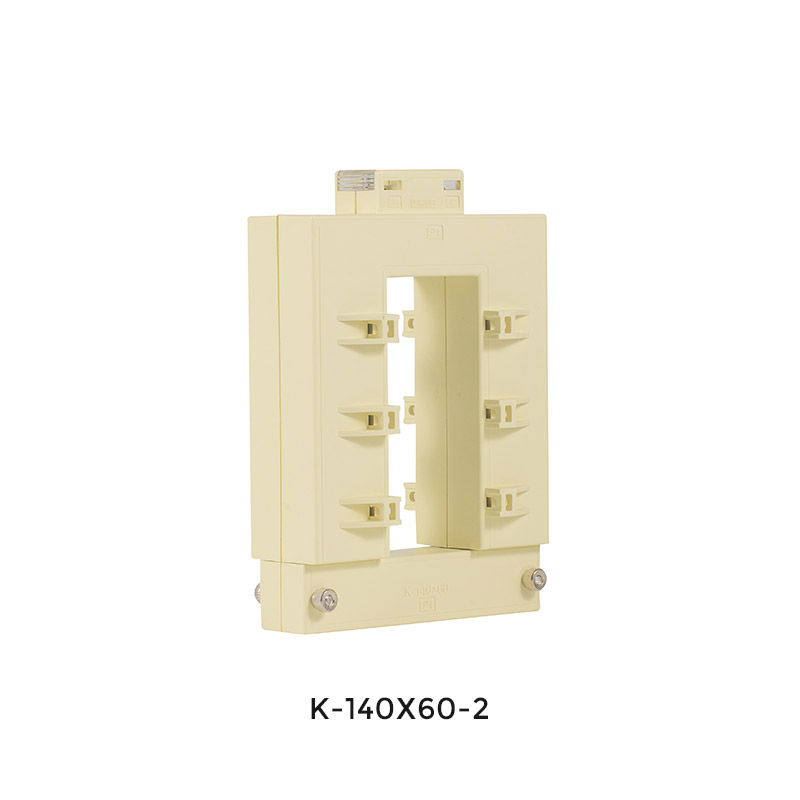

K-140 × 60

1000-2000/5 (1) a

10

1

130 × 10/1-3

2500-3000/5 (1) a

10

4000-5000/5 (1) a

15

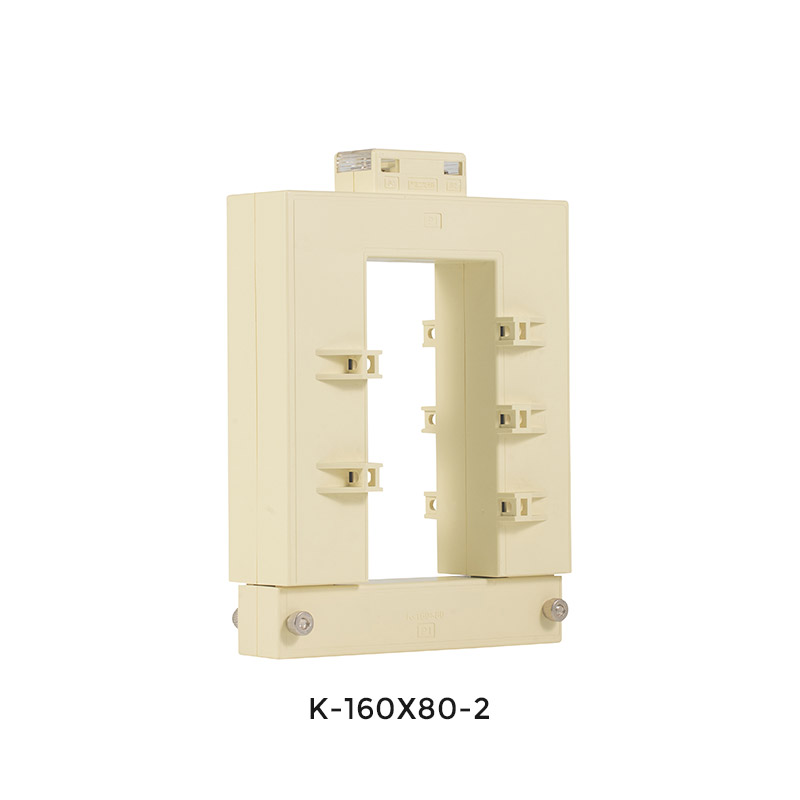

K-160 × 80

1000-2000/5 (1) a

10

1

150 × 10/1-4

2500-3000/5 (1) a

10

4000-6000/5 (1) a

15

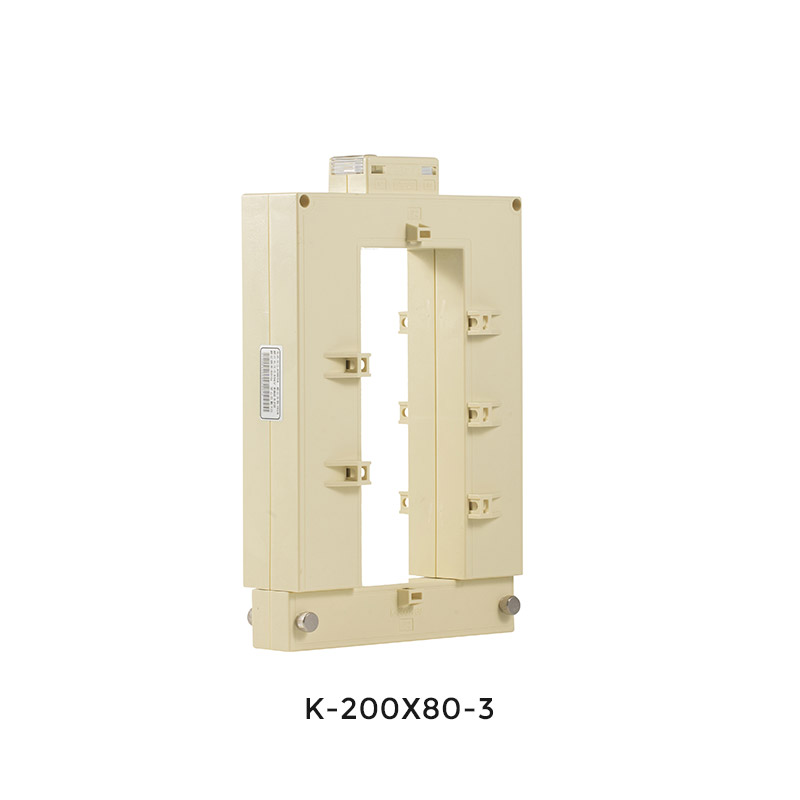

K-200 × 80

1000-2000/5 (1) a

10

1

200 × 10/1-4

2500-3000/5 (1) a

10

4000-6000/5 (1) a

15
